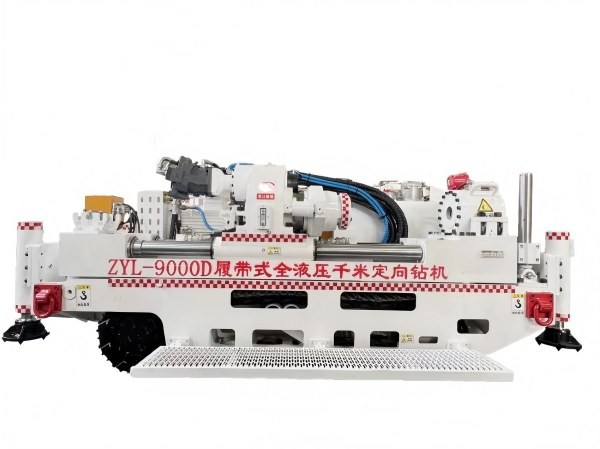

Product Name: Fully hydraulic crawler-mounted mining Directional Drilling Rig

Product Model: ZYL-9000D

Place of Origin: Shanxi, China

Product Dimensions: Length 3400 × Width 1300 × Height 1470 (±20)

ZYL-9000D Crawer-mounted Fully Hydraulic Kilomter Mining Directional Drilling Rig

I. Main Applications

Mainly used for various directional drilling operations for the control of gas disasters, water disasters, rockburst disasters, and geological exploration in coal mines.

II. Scope of Application

Suitable for directional drilling in various coal and rock formations with a firmness coefficient of 0.5 < f ≤ 10.

Suitable for directional drilling in roadways or drilling sites with a height of not less than 3m, a width of not less than 4.5m, and a length of not less than 10m.

Also applicable to non-coal mining applications such as tunnels, bridges, national defense construction, geological exploration projects, and directional drilling and extraction of unconventional natural gas.

III. Product Features

Independent water cooling and independent hydraulic oil circulation systems effectively control oil temperature and enhance the lifespan of the entire hydraulic system, including hydraulic pumps and seals.

Utilizes fully imported, well-known hydraulic brand components to ensure stable and reliable hydraulic system performance.

Core power head components with proprietary intellectual property rights and independently developed, featuring stability, reliability, and no mechanical lock failure of the front-clamping power head.

Rated output torque of 9000 N.m, with a maximum output torque of not less than 11000 N.m, enabling efficient hole enlargement operations with a maximum hole diameter of 165mm.

The Ming directional drill rig host and pump truck adopt a split structure, which is compact, flexible in arrangement, and highly adaptable to various field conditions.

Modular design of the directional drilling rig pump truck for simple and convenient maintenance.

IV. Main Technical Parameters
