Product Name: Mining fully hydraulic crawler-mounted kilometer Directional Drilling Rig

Product Model: ZYL-18000D

Place of Origin: Shanxi, China

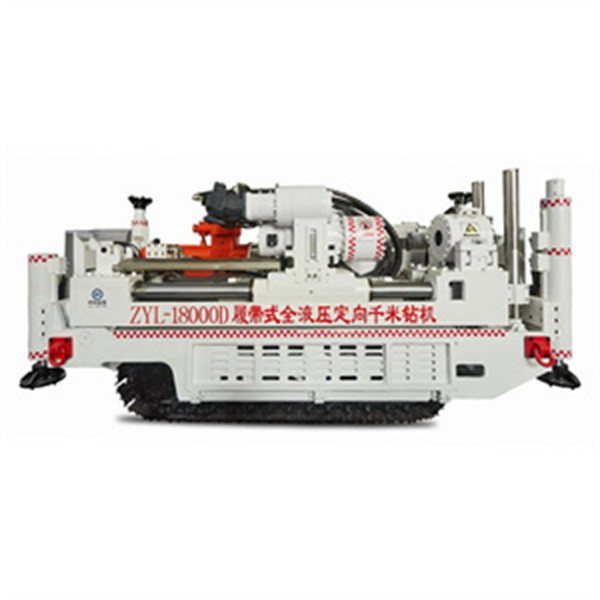

Mining ZYL-18000D  Crawer-mounted Fully Hydraulic Kilomter Directional Drill Rig

Introduction

Main Uses

This ZYL-18000D track-mounted hydraulic long-reach directional drilling rig is primarily used for various types of directional drilling in the management of methane hazards, water hazards, and impact ground pressure hazards in coal mines, as well as geological exploration.

Application Scope

Suitable for directional drilling in coal and rock formations with a firmness coefficient ranging from 0.5 < f ≤ 10.

Suitable for directional drilling in roadways or drilling sites that are at least 3 meters in height, no less than 4.5 meters in width, and not shorter than 10 meters in length. Also applicable to non-coal mines such as tunnels, bridges, national defense construction, geological survey projects, and unconventional natural gas directional drilling operations.

Product Features

· Independent water cooling and hydraulic oil circulation systems effectively control oil temperature, extending the lifespan of the entire hydraulic system, including hydraulic pumps and seals.

· Utilizes imported renowned hydraulic components to ensure the stability and reliability of the hydraulic system.

· Owns proprietary intellectual property rights for the core power head assembly, which is designed to be simple and reliable, avoiding potential mechanical lock-up faults in front-clamping power heads.

· Rated output torque is 18,000 N·m, with a maximum output torque of no less than 21,000 N·m, capable of efficiently completing hole enlargement operations, with a maximum enlargement diameter of up to 265 millimeters.

· The drill rig host and pump truck adopt a modular design, compact in size, flexible in layout, and highly adaptable to site conditions.

· Modular design of the pump truck simplifies maintenance and makes it more convenient.

Main Technical Parameters
