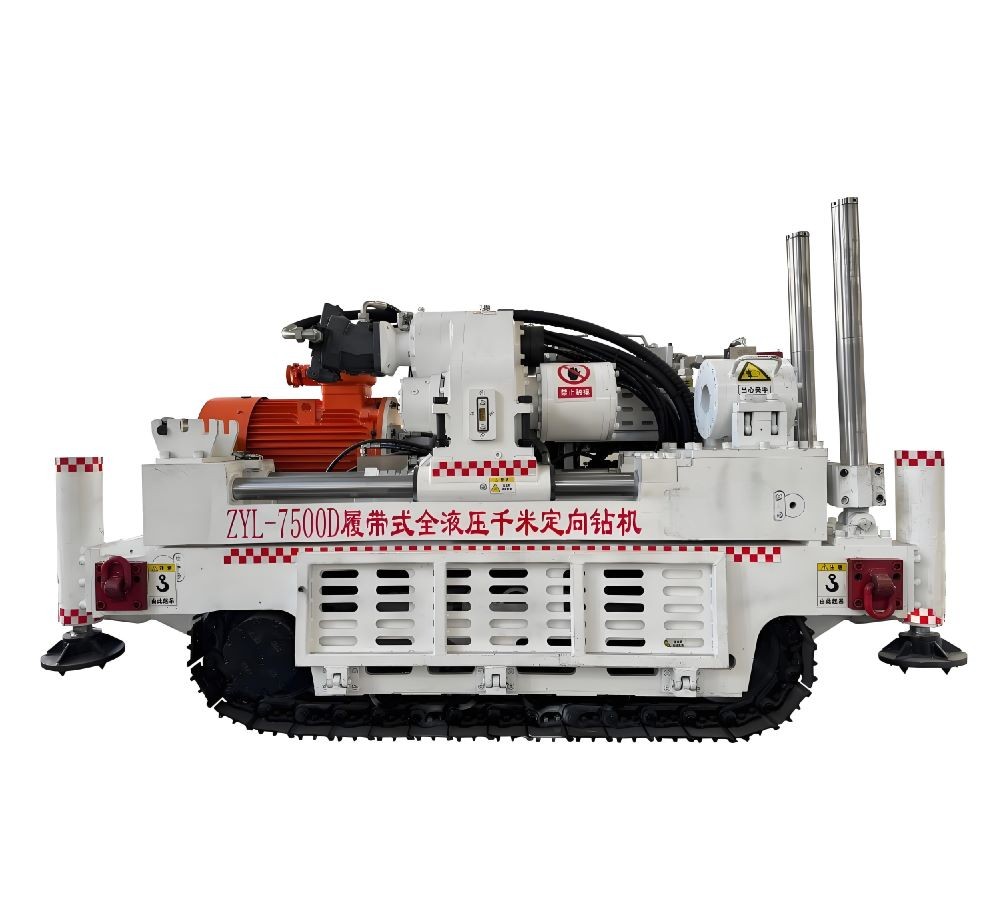

Product Name: Mining fully hydraulic tracked Directional Drilling Rig

Product Model: ZYL-7500D

Place of Origin: Shanxi, China

Product Dimensions: Length 2700 × Width 1250 × Height 1550 (±20)

I. Main Applications
The ZYL7500D mine-used directional drill rig can be used in conjunction with different models of kilometer-long directional drilling rigs to output high-pressure hydraulic kinetic energy, driving the downhole screw motor, which in turn rotates the directional drill bit at high speed, enabling directional drilling operations.

II. Scope of Application
Suitable for directional drilling in coal and rock formations with a ground firmness coefficient (f) ranging from 0.5 < f ≤ 10.
Applicable for directional drilling in roadways or drilling sites with a height of no less than 3m, a width of no less than 4.5m, and a length of no less than 10m.
Also applicable for non-coal mining operations, such as geological exploration projects in tunnels, bridges, defense construction, as well as directional drilling and extraction of unconventional natural gas.
Can be paired with high-pressure sealed drill pipes and wireless guidance systems to achieve directional hydraulic fracturing.

III. Product Features
Equipped with an independent water-cooling system and an independent hydraulic oil circulation system, which can effectively control oil temperature and enhance the lifespan of the entire hydraulic system, including the hydraulic pump and hydraulic oil seals.
Utilizes fully imported, renowned hydraulic brand components to ensure the stability and reliability of the hydraulic system.
Features core powerhead components with independent intellectual property rights and independently developed technology, ensuring stable and reliable operation without mechanical lock-up failures in the front-clamping powerhead.
Boasts a rated output torque of 7500 N·m and a maximum output torque of no less than 8500 N·m, enabling efficient hole enlargement operations with a maximum hole enlargement diameter of 165mm.
The directional drilling rig host and pump truck adopt a split-type structure, offering a compact size, flexible layout, and strong on-site adaptability.
The pump truck of the mine-used directional drill rig is designed with modularity, facilitating simple and convenient maintenance.

IV. Main Technical Parameters
