Product Name:PDC drill bit

Product Model:

Place of Origin: Shanxi, China

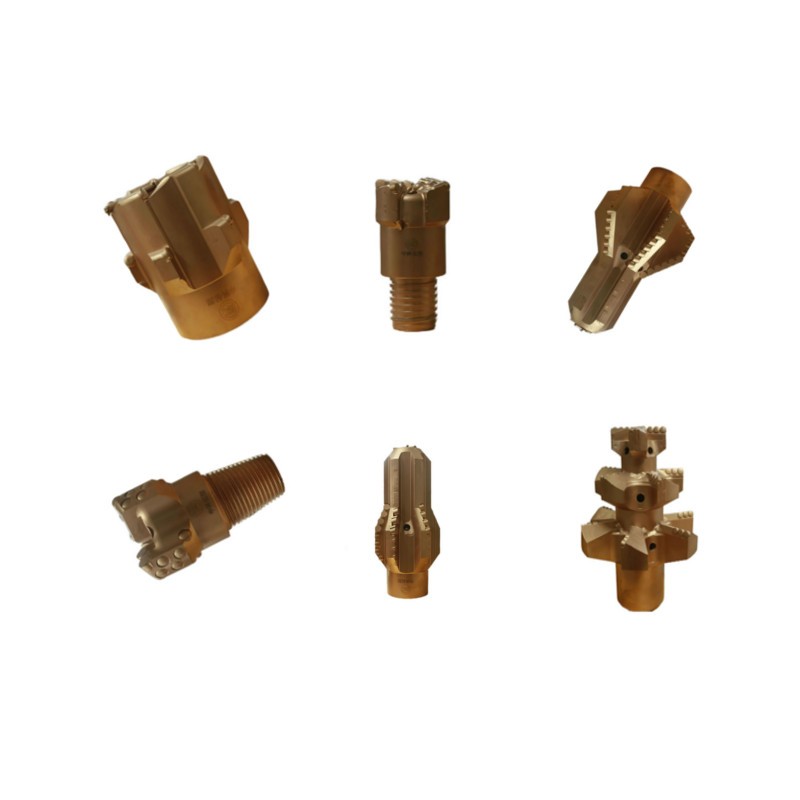

PDC Polycrystalline Diamond Compact (PDC) Drill Bit

The PDC polycrystalline diamond compact (PDC) drill bit is suitable for drilling in soft to medium-hard (f=1~10) formations, particularly in harder rock construction. It is not recommended for use in fractured, fissured, or other complex formations. The PDC bit is primarily used as a composite bit for geological exploration and surveying, applicable to soft to medium-hard rock layers. Some manufacturers have newly developed advanced composite materials that can now be applied to rock formations of grade ten hardness.

The matrix-type polycrystalline diamond compact (PDC) drill bit is a cutting-type bit where the polycrystalline diamond compact (PDC) is brazed onto the bit matrix. The matrix bit is sintered from tungsten carbide powder, with synthetic polycrystalline diamond compacts brazed onto the tungsten carbide matrix and natural diamonds used for gauge protection.
