1300m Geotechnical Core Drill – Precision Rig with Integrated Mud Pump
The 1300m geotechnical core drill is purpose-built for engineering-focused projects like dam safety, tunnel alignment, and high-rise foundation investigations. Featuring precise feed control and multi-point pressure monitoring, it maintains optimal drilling parameters across mixed lithologies—from clay to granite.
Engineering-Centric Design
l Control System: Infinitely adjustable feed rate (0–1.2 m/min) for undisturbed sample collection
l Mud Circulation: Integrated 300 L/min mud pump with agitator ensures cuttings removal in sticky formations
l Compatibility: Accepts BS, NS, HS, PS, and φ108 rods for flexible project requirements
l Compact Footprint: Only 5.43m long and 10.3 tons—ideal for urban or confined sites
As a dedicated geotechnical core drilling rig, it delivers ASTM D1586-compliant samples critical for geotechnical analysis. The core rig with mud pump eliminates need for external fluid systems, reducing setup time by 40%.
For procurement teams, verify the CSD1300G engine specs Cummins (model B5.9, 132kW) to ensure fuel availability in your region. Trusted by engineering consultancies across Europe and Southeast Asia for core drill for geological survey missions.

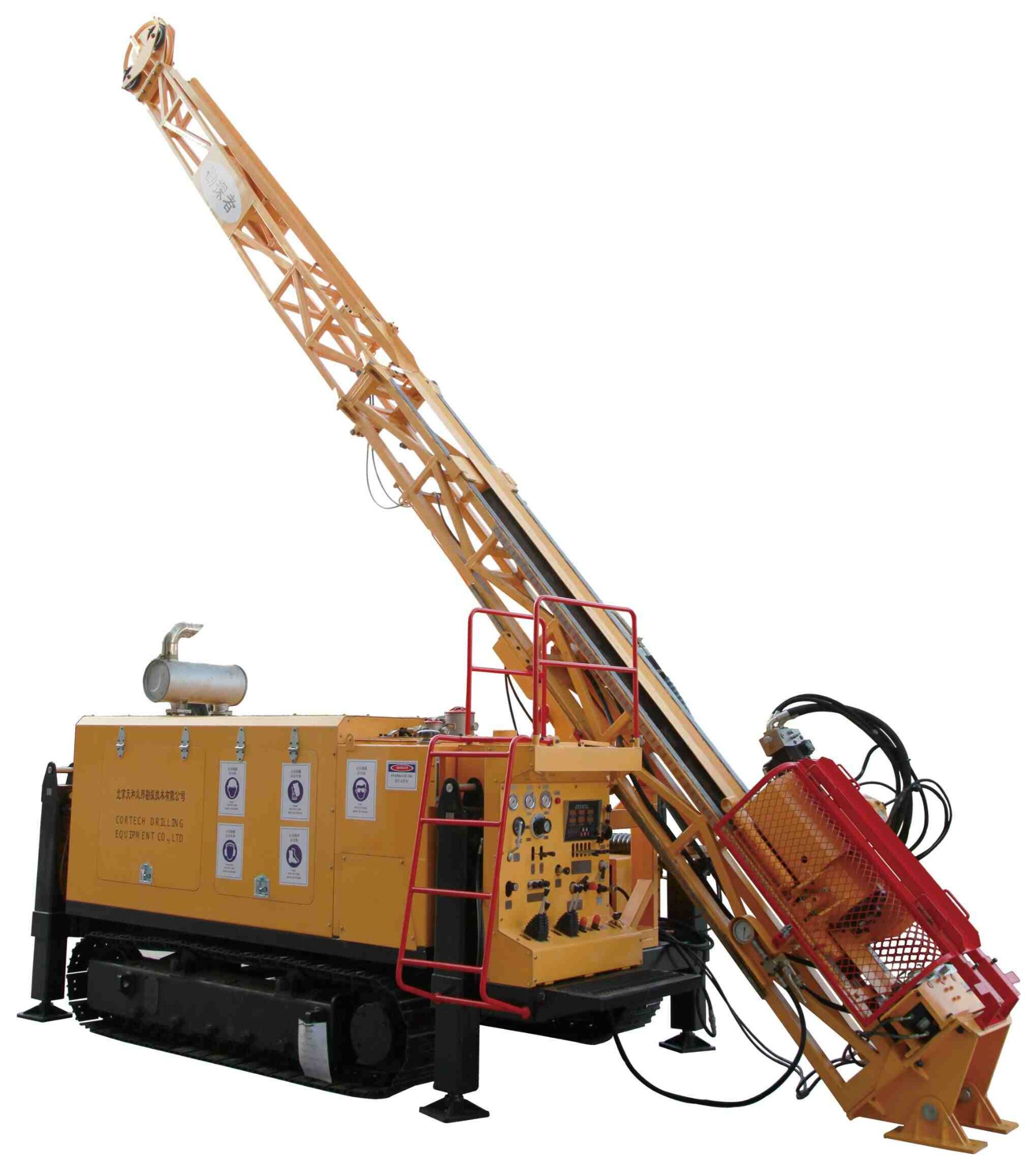

Main Technical Specifications of CSD1300G core drill rig
|
Category |
Parameter |
Value |
|
Drilling Capacity (Reference) |
Rod Size BS |
1,300 m |
|
|
Rod Size NS |
1,000 m |
|
|
Rod Size HS |
700 m |
|
|
Rod Size PS |
400 m |
|
Hydraulic System |
Rated Pressure |
26 MPa |
|
|
Cooling Method |
Air-cooled |
|
Engine |
Model |
Cummins 6BTA5.9-C180 |
|
|
Type |
Turbocharged |
|
|
Rated Power |
132 kW |
|
|
Rated Speed |
2,500 rpm |
|
Top Drive (Power Head) |
Maximum Torque |
4,257 N·m |
|
|
Maximum Speed |
1,182 rpm |
|
|
Feed Stroke |
3,500 mm |
|
|
Through-Hole Diameter |
117 mm |
|
|
Hoisting Force |
120 kN |
|
|
Feed Force |
50 kN |
|
Main Winch |
Hoisting Force |
68 kN |
|
|
Hoisting Speed |
28 m/min (low), 67 m/min (high) |
|
|
Wire Rope Diameter |
16 mm |
|
|
Rope Capacity |
30 m |
|
Wireline Coring Winch |
Hoisting Force |
11 kN (empty drum) |
|
|
Hoisting Speed |
120 m/min (empty drum) |
|
|
Wire Rope Diameter |
6.6 mm |
|
|
Rope Capacity |
1,000 m |
|
Mast |
Total Height |
10 m |
|
|
Drilling Angle Range |
45° – 90° |
|
|
Sliding Stroke |
1.4 m |
|
Rod Clamp at Hole Mouth |
Compatible Drill Rod Sizes |
BS, NS, HS, φ108, PS |
|
Travel Performance |
Maximum Gradeability |
30° |
|
|
Maximum Travel Speed |
2 km/h |
|
Transport Dimensions |
Length × Width × Height |
5,430 × 2,300 × 2,600 mm |
|
Machine Weight |
Total Weight |
10.3 t |
