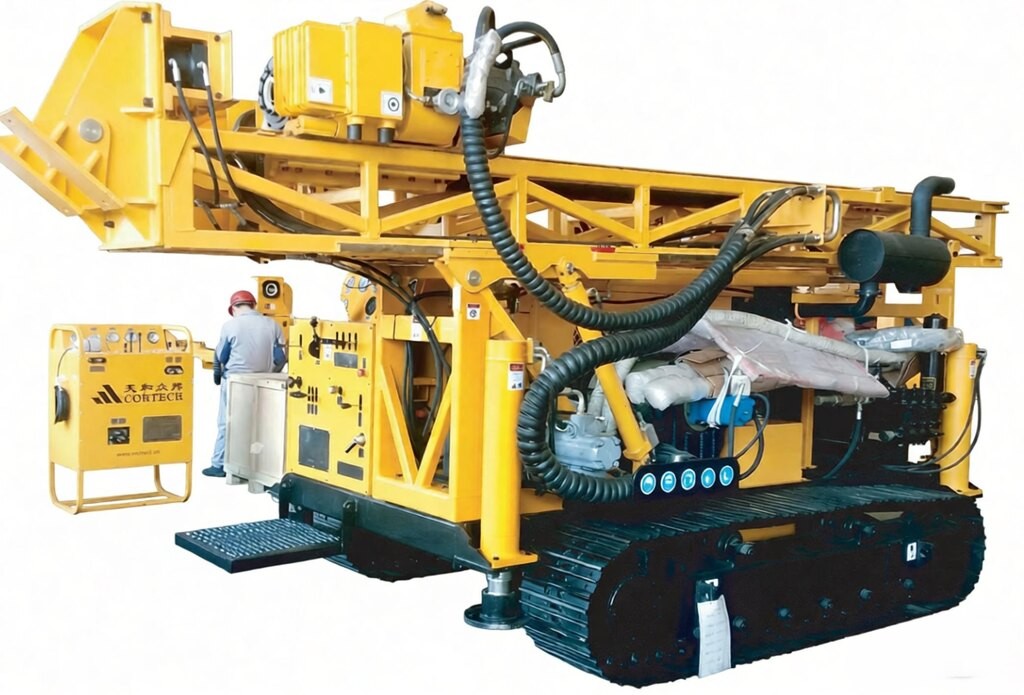

1300m Tracked Core Drill Rig – Crawler-Mounted for Rugged Terrain
The 1300m tracked core drill rig integrates a powerful 154kW Cummins engine with a rugged crawler undercarriage, enabling access to steep (>30°), soft, or forested sites where wheeled rigs cannot operate. With a 10m telescopic mast and 4,257Nm top drive, it handles full 1300m B-size holes while maintaining stability on unstable ground.
Field-Proven Mobility Features
l All-Terrain Travel: 2 km/h speed with 360° turn radius; no road preparation needed
l Integrated Systems: Onboard 1,000m wireline winch and mud pump reduce auxiliary equipment
l Fast Relocation: Folds to 5.1m length for container transport in under 2 hours
l Safety: Automatic grade-sensing shutdown prevents rollover on slopes
This crawler core drilling machine is widely used in mountainous gold belts of Peru and Indonesia. Its portable core rig with tracks design minimizes environmental impact while maximizing uptime.
Before mobilization, review the CSD1300L transport dimensions to ensure compliance with local road regulations. Ideal for medium-scale exploration campaigns requiring frequent site moves.
Main Technical Specifications of CSD1300L core drilling rig
|
Category |
Parameter |
Value |
|
Drilling Capacity (Reference) |
Rod Size B (55.5 mm) |
1,300 m |
|
|
Rod Size N (71 mm) |
1,000 m |
|
|
Rod Size H (89 mm) |
700 m |
|
|
Rod Size P (114 mm) |
400 m |
|
Hydraulic System |
Rated Pressure |
26 MPa |
|
|
Cooling Method |
Air-cooled |
|
Engine |
Model |
Cummins B5.9CS4 210C |
|
|
Type |
Turbocharged |
|
|
Rated Power |
154 kW |
|
|
Rated Speed |
2,200 rpm |
|
Top Drive (Power Head) |
Maximum Torque |
4,257 N·m |
|
|
Maximum Speed |
1,182 rpm |
|
|
Feed Stroke |
3,500 mm |
|
|
Through-Hole Diameter |
117 mm |
|
|
Hoisting Force / Feed Force |
127 kN / 50 kN |
|
Main Winch |
Hoisting Force (empty drum) |
68 kN |
|
|
Hoisting Speed |
28 m/min |
|
|
Wire Rope Diameter |
16 mm |
|
|
Rope Capacity |
30 m |
|
Wireline Coring Winch |
Hoisting Force (empty drum) |
11 kN |
|
|
Hoisting Speed |
120 m/min |
|
|
Wire Rope Diameter |
6.6 mm |
|
|
Rope Capacity |
1,000 m |
|
Mast |
Total Height |
10 m |
|
|
Drilling Angle Range |
45° – 90° |
|
|
Sliding Stroke |
1.1 m |
|
Rod Clamp at Hole Mouth |
Compatible Rod Sizes |
B, N, H, P |
|
Travel Performance |
Maximum Gradeability |
30° |
|
|
Maximum Travel Speed |
2 km/h |
|
Transport Dimensions |
Length × Width × Height |
5,100 × 2,350 × 2,600 mm |
|
Machine Weight |
Total Weight |
8.5 t |
