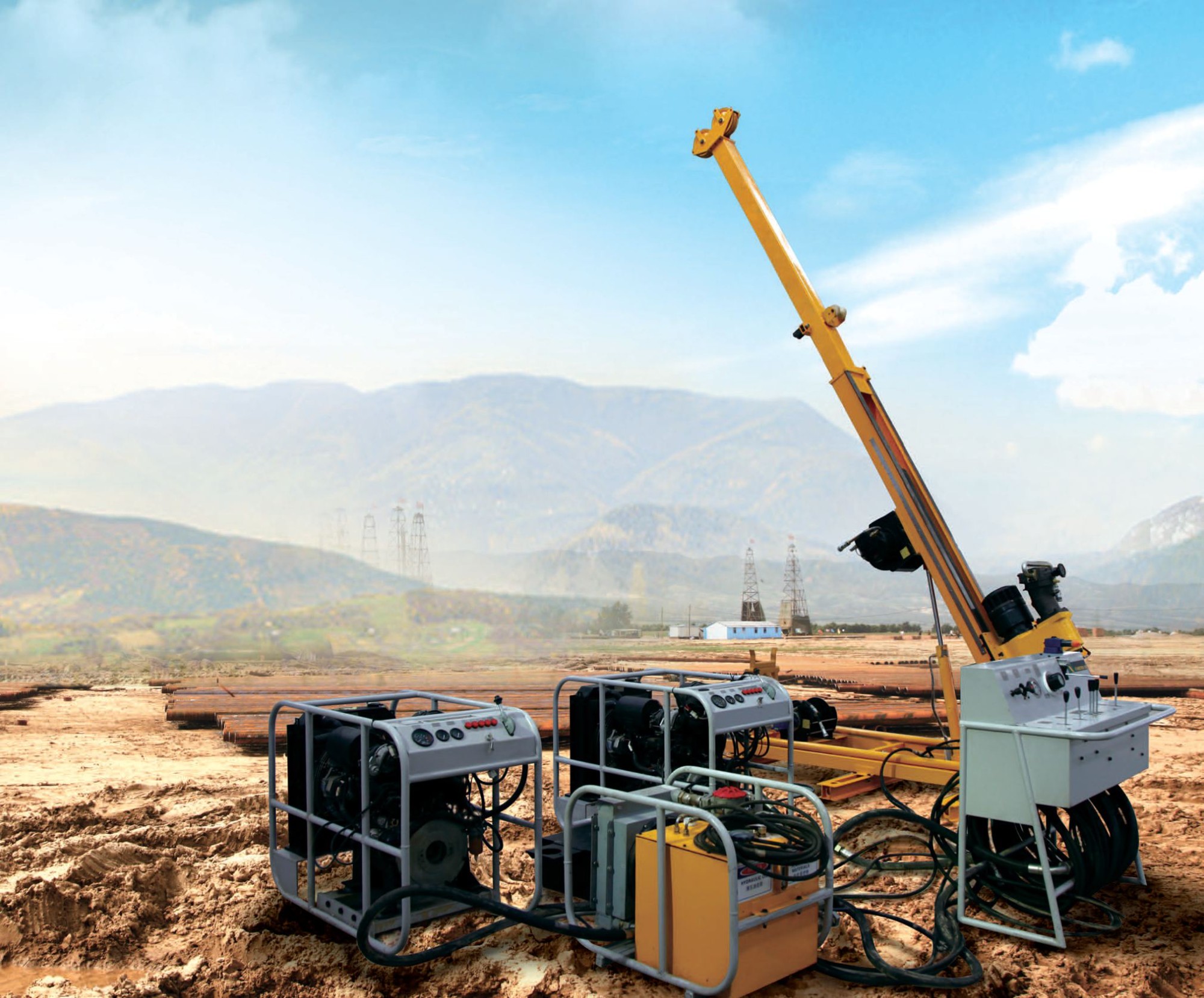

Modular Core Drill Rig – Man-Portable for Remote Area Drilling
The modular core drill rig is the ultimate solution for extreme-access exploration. It disassembles into modules weighing ≤200kg (main winch: 230kg), enabling transport by human porters, mules, or light helicopters to locations unreachable by vehicles—such as alpine ridges, dense rainforests, or desert plateaus.
Designed for Frontier Logistics
l Ultra-Light Modules: Four independent 24.5kW Kubota engines (total 98kW)
l Rapid Deployment: Full assembly and commissioning in <4 hours by 3-person crew
l Standard Compatibility: Uses 3m Q-series rods and bits available globally
l Proven Reliability: Deployed in Himalayan, Andean, and Papua New Guinean highlands
As a true man-portable core drilling rig, it enables cost-effective reconnaissance in greenfield zones. The disassemblable core rig design eliminates helicopter sling-load risks.
Confirm the CSD500CE max unit weight 200kg matches your porter or drone payload limits. The definitive core rig for remote area drilling where logistics dominate budget decisions.

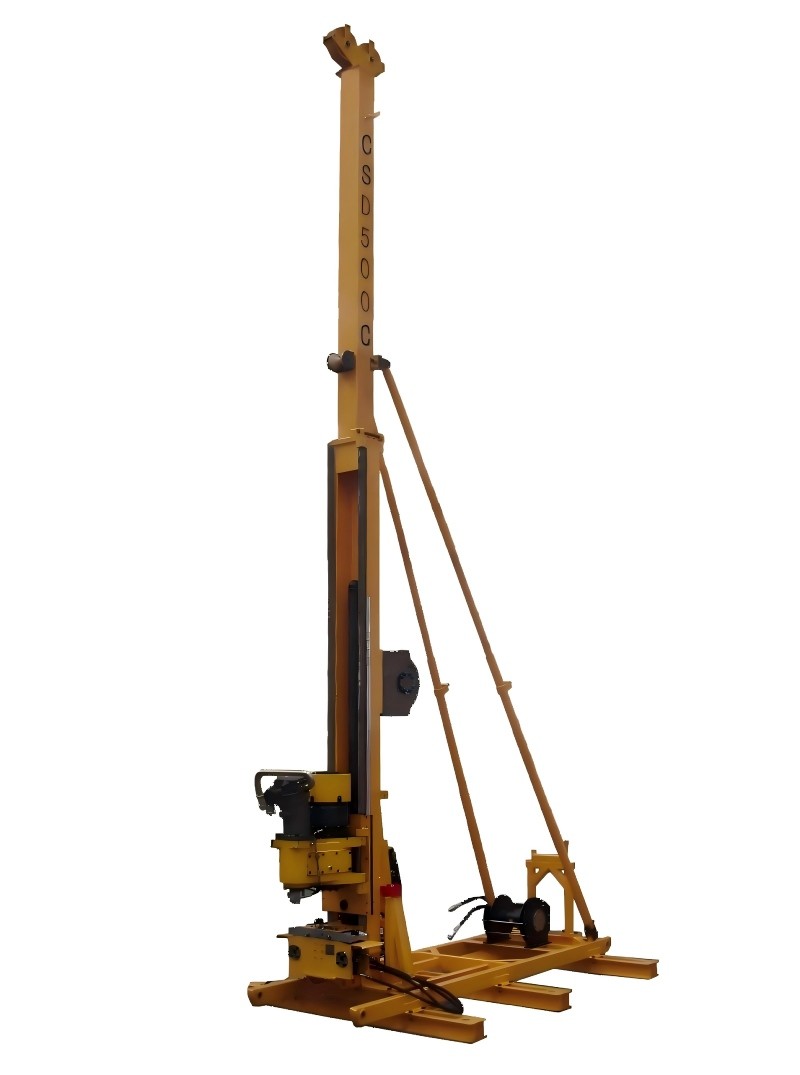

Main Technical Specifications of CSD500CE Core Drill Rig
|
Category |
Parameter |
Value |
|
Drilling Capacity (Reference) |
BQ |
600 m |
|
|
NQ |
400 m |
|
|
HQ |
200 m |
|
Hydraulic System |
Rated Pressure |
22 MPa |
|
|
Cooling Method |
Air-cooled |
|
Engine |
Manufacturer |
Kubota |
|
|
Rated Power |
24.5 kW (x4 units) |
|
|
Rated Speed |
3,000 rpm |
|
Power Head |
Maximum Torque |
1,120 Nm |
|
|
Maximum Speed |
1,100 rpm |
|
|
Feed Stroke |
1,800 mm |
|
|
Lifting Force / Feed Force |
70 kN / 35 kN |
|
Main Winch |
Lifting Force |
30 kN |
|
|
Lifting Speed |
26 m/min (on empty drum) |
|
|
Wire Rope Diameter |
14 mm |
|
|
Rope Capacity |
30 m |
|
Wireline Core Winch |
Lifting Force |
11 kN (on empty drum) |
|
|
Lifting Speed |
110 m/min (on empty drum) |
|
|
Wire Rope Diameter |
5 mm |
|
|
Rope Capacity |
500 m |
|
Mast |
Overall Height |
6 m |
|
|
Drilling Angle |
45° ~ 90° |
|
Hole Opening Clamp |
Compatible Drill Rods |
BQ, NQ, HQ, PQ |
|
Weight |
Maximum Weight of Disassembled Unit |
200 kg (Main winch: 230 kg) |
