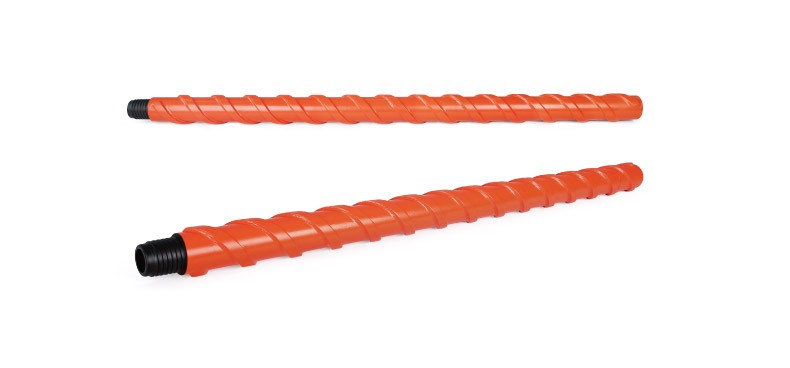

MWD directional drill pipe
Wireless MWD directional Drill Pipe features friction-welded joints, dual spiral grooves, and high-strength materials for directional drilling in coal mines, hard rock, and complex formations, supporting mud pulse MWD systems and various drilling methods
Product Name: Wireless Measurement While Drilling (MWD) Drill Pipe
Product Model:
Place of Origin: Shanxi, China
Product Description
The Wireless Measurement While Drilling (MWD) directional drill pipe with ribs is primarily used in conjunction with mud pulse wireless MWD systems for directional drilling. This drill pipe offers high overall strength, with materials meeting or exceeding the requirements of G105 steel grade. The joints have a high load-bearing capacity, featuring yield strengths surpassing those of the pipe body and meeting V150 steel grade requirements.
Features
Friction Welded Components: The male joint, female joint, and pipe body are securely joined through friction welding.
Dual Lead Spiral Grooves: Designed for efficient cuttings removal during drilling operations.
High Strength, Hardness, and Impact Toughness: Ensures durability and performance under demanding conditions.
Large Pitch Trapezoidal Threads: Provides higher transmission efficiency and increased root strength of the threads.
Applications
This wireless MWD drill pipe is mainly used for directional drilling in long horizontal boreholes in coal mines. It can also replace conventional smooth drill pipes for drilling in hard, intact rock formations, broken coal seams, and other challenging geological conditions. Suitable for both clear water or air rotary drilling methods, as well as full-length casing installation processes.
Technical Specifications
Drill Pipe Specification Spiral Diameter (mm) Pipe Body Diameter (mm) Through Hole Diameter (mm) Length (mm) Pipe Body Material Number of Blade Heads
Φ40/82 82 73 40 1500 G105 2
Φ73/89 89 73 41 1000 G105 2
