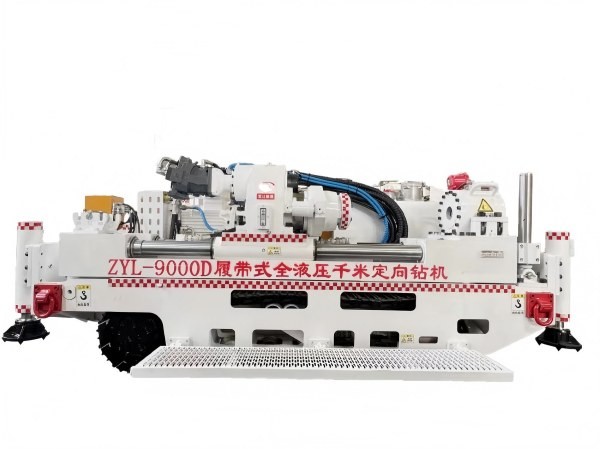

ZYL-9000D – In-Seam Directional Drilling Rig for 1000m Methane Drainage in Soft Coal Seams
The ZYL-9000D is a purpose-built in-seam directional drilling rig designed for 1000m methane drainage in soft, unstable coal seams prone to collapse or outbursts. With 9,000 N·m of adaptive torque and intelligent feed control, it maintains borehole stability in weak geology—making it ideal for stress-relief drilling ahead of longwall faces in high-risk mining districts such as Guizhou and Henan.
Developed with input from national coal safety institutes and deployed in over 30 Chinese mines since 2021, the ZYL-9000D features a modular split-structure design: power and mast units transport separately through roadways under 3.8 meters wide, with full reassembly in under 2 hours. Its compact footprint and ergonomic cabin reduce operator fatigue during extended shifts in confined entries.
Manufactured by a subsidiary of Shanxi Jinneng Holding Group (Fortune Global 500), the rig integrates explosion-proof electrical systems, emergency shutdown protocols, and full compliance with GB 3836 standards. It carries the mandatory China Coal Mine Safety Mark (MA), ensuring safe operation in gassy underground environments.
For mines prioritizing safety, rapid deployment, and reliable performance in soft coal, the ZYL-9000D delivers proven value at an accessible price point—complementing the high-torque ZYL-18000D and modular ZYL-15000D in a complete in-seam drilling portfolio.
Technical Specifications: ZYL-9000D – In-Seam Directional Drilling Rig for Soft Coal
|
Item |
Unit |
Parameters |
|
|
Rated Torque |
N.m |
9000 |
9000(Omnidirectional) |
|
Rated Speed |
r/min |
40～120 |
40～120 |
|
Thrust Force |
K.N |
200 |
170 |
|
Pulling Force |
K.N |
210 |
200 |
|
Thrust Speed |
m/min |
3.0 |
3.0 |
|
Pulling Speed |
m/min |
3.0 |
3.0 |
|
Feed Stroke |
mm |
1000 |
800 |
|
Drilling Depth |
m |
≥1000 |
≥800 |
|
Drill Pipe Diameter |
mm |
φ73/φ89/φ95 |
φ73/φ89/φ95 |
|
Hole Opening Diameter |
mm |
φ98/φ113/φ120/φ133/φ153/φ165 |
φ98/φ113/φ120/φ133/φ153/φ165 |
|
Hole Opening Height |
mm |
1125～1950 |
1720～2370 |
|
Drilling inclination Angle |
0 |
-10～+15 |
-30⁰～+60⁰ |
|
Drilling Azimuth Angle |
0 |
/ |
0～180⁰ |
|
Rated Power |
kW |
90kW |
75kW |
|
Tank Capacity |
L |
400 |
300 |
|
Rated Voltage |
V |
660/1140 |
660/1140 |
|
Main Unit Dimensions |
mm |
Length3400×width 1300×height1470(±20) |
length3530×width 1300×height1930(±20) |
|
Main Unit Mass |
kg |
9800 |
11600 |
|
Gradeability |
0 |
±20⁰ |
±20° |
Certification: China Coal Mine Safety Mark (MA)
Warranty: 2-year global support
Field Experience: 30+ mines, 1000m depth in soft seams (RQD < 30%)
