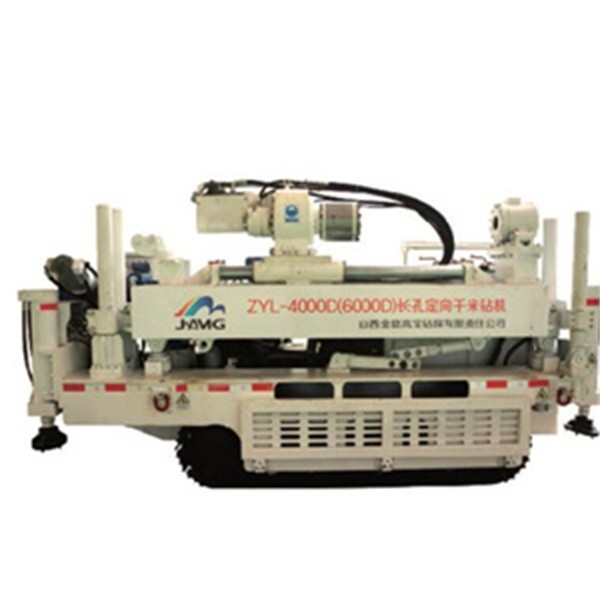

ZYL-6000D – Self-Propelled In-Seam Directional Drilling Rig for 600m Dual-Mode Operations
The ZYL-6000D is a fully self-propelled in-seam directional drilling rig with a unique dual-torque system, enabling seamless adaptation between shallow monitoring and deep drainage tasks—all within the coal seam. Designed for teams building their first directional capability or scaling multi-hole operations, it eliminates the need for external transport while delivering proven reliability.
Two Modes. One Rig.
l Economy Mode (4,000 N·m): Optimized for 400m geological surveying, water detection, and methane monitoring—ideal for repetitive grouting patterns and budget-conscious projects.
l High-Power Mode (6,000 N·m): Delivers robust performance for 600m gas drainage and ground reinforcement in stable to moderately fractured coal seams.
Featuring a 1-meter continuous stroke mechanism, the ZYL-6000D reduces rod connection frequency by 30%, significantly boosting efficiency in high-cycle operations. Its low-ground-pressure crawler-mounted chassis relocates between borehole sites in minutes—preserving roadway integrity without auxiliary equipment.
Manufactured by Shanxi Jinneng Holding Group (Fortune Global 500) to ISO 9001 standards, the rig integrates diagnostic LEDs, quick-disconnect fittings, and an optional remote-control kit for hazardous zones. Every unit undergoes the same 72-hour full-load testing as the ZYL-18000D flagship and includes a 2-year global warranty.
Certified with China’s Coal Mine Safety Mark (MA) and CE-compliant electrical systems, the ZYL-6000D is deployed across 15+ mines in China and Southeast Asia for auxiliary tunnel development, longwall panel preparation, and international methane control projects—where mobility, uptime, and adaptability define success.
Technical Specifications: ZYL-6000D – Self-Propelled In-Seam Directional Drilling Rig
|
Category |
Parameter |
Value |
|
Dimensions & Weight |
Length × Width × Height |
4250 × 1500 × 1700 mm |
|
|
Operating Mass |
8,500 kg |
|
Drilling Performance |
Rated Torque |
4,000 / 6,000 N·m (dual mode) |
|
|
Rated Speed |
110 r/min |
|
|
Maximum Speed |
506 r/min |
|
|
Max Drilling Depth |
≥600 m |
|
|
Feed Force |
200 kN |
|
|
Retraction Force |
200 kN |
|
|
Thrust Speed |
20,860 mm/min |
|
|
Retraction Speed |
19,253 mm/min |
|
Travel System |
Type |
Hydraulic crawler track |
|
|
Travel Speed |
25 m/min |
|
|
Gradeability |
20° |
|
Hydraulic System |
Rated Pressure |
29 MPa |
|
|
Rated Flow |
190 L/min |
|
Mud Pump |
Max Pressure |
10 MPa |
|
|
Max Flow Rate |
190 L/min |
|
Power Unit |
Rated Power |
75 kW |
|
Certifications |
|
MA (China Coal Mine Safety), CE |
Certification: MA (China Coal Mine Safety)
Warranty: 2-year global support
Field Use: 400m monitoring / 600m drainage in in-seam applications
