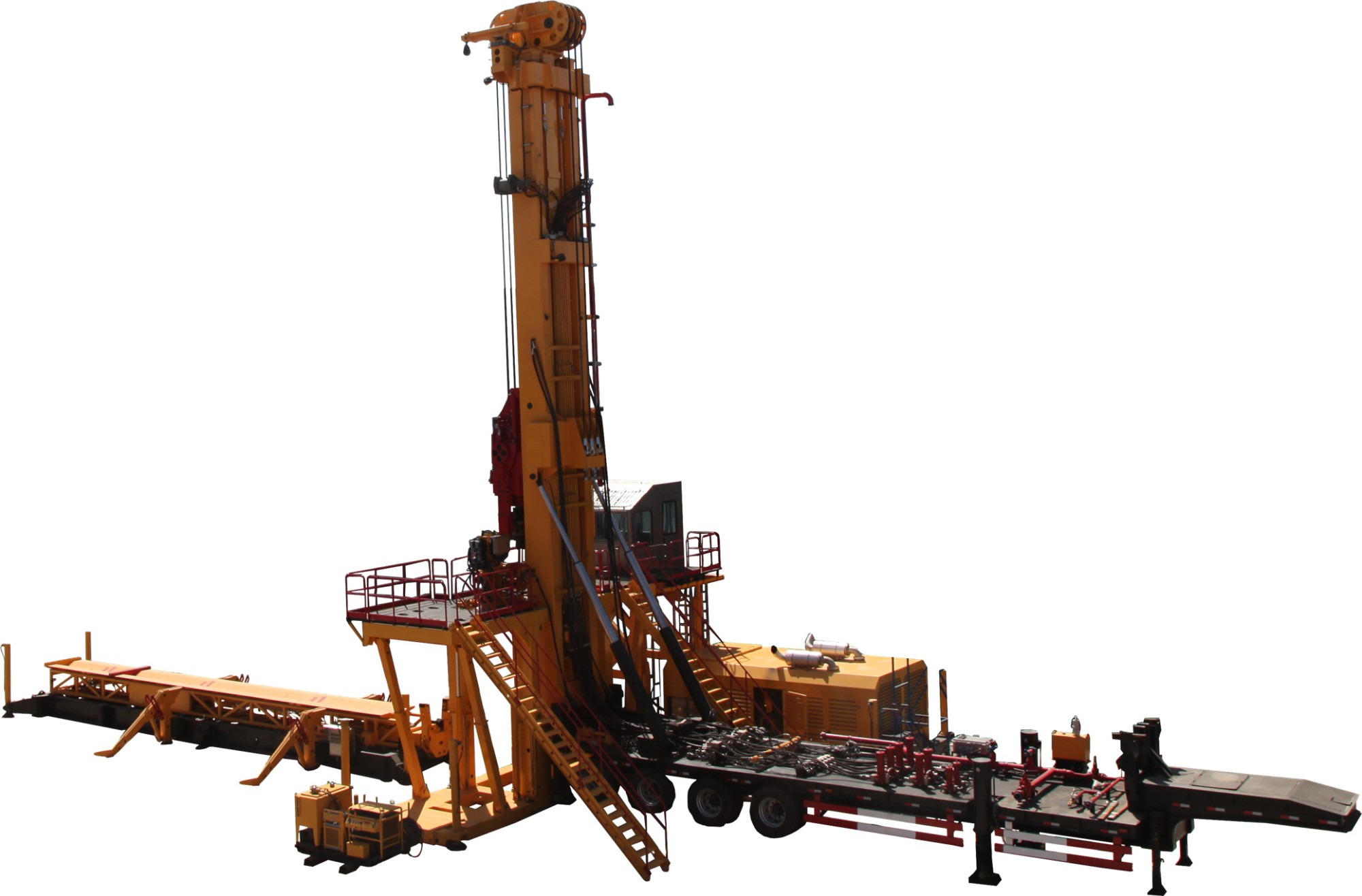

CMD150 – Modular Large-Diameter Drilling Rig

Extreme-Access Rig for Ultra-Deep Geothermal and Remote Energy Frontiers

The CMD150 modular large-diameter drilling rig unlocks energy potential in the world’s most inaccessible locations—Arctic tundra, volcanic highlands, island grids, and high-altitude plateaus. Its helicopter-liftable modules and 150-ton power make it the only viable solution for ultra-deep geothermal (>3,000 m) and frontier coalbed methane.

Modular by Design, Global by Reach

Disassembles into 8 transportable units (<5 tons each)

Fits standard 40-foot containers or Mil Mi-26 cargo holds

Reassembles on-site in <72 hours with minimal tools

Deep-Drilling Powerhouse

As a certified large-diameter drilling rig, the CMD150 delivers:

1,200 mm (47") max hole diameter | Depth > 3,000 meters

Dual 500 kW engines (1,000 kW total) with load-sharing control

Anti-vibration mast and active torque damping for hard rock stability

Real-time LWD (Logging While Drilling) integration

Deployed Where Others Can’t Go

Used in Iceland’s Reykjanes geothermal field, Kenya’s Olkaria complex, and Qinghai’s permafrost zones, the CMD150 enables baseload renewable energy in off-grid regions.

Safety & Reliability

ISO 13628-7 compliant for HPHT wells

Redundant BOP control and emergency disconnect

Cold-weather package for -40°C operation

Applications

Supercritical geothermal wells (>400°C)

Remote CBM in ecologically protected zones

Scientific deep drilling (e.g., ICDP projects)

Offshore island freshwater exploration

If your project is off the map, choose a modular large-diameter drilling rig built for extremes.

→ Contact us for a logistics feasibility study or modular transport plan.

CMD150 – Key Technical Specifications
